2017 Victory Motorcycles Magnum® for sale in Duluth, MN | Arrowhead Powersports

Pre-Owned » Magnum®

	Starting At: $22,599.00

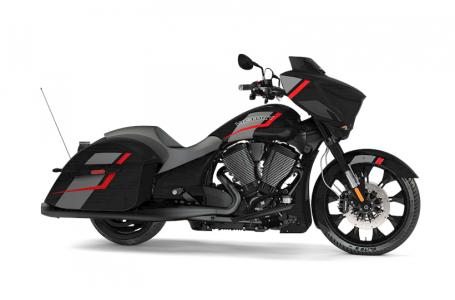

2017 Victory Motorcycles Magnum®

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Gloss Black w/Graphics

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Command Respect

Standard Features

21" Custom Front Wheel: With a larger-than-life 21-inch front wheel-the biggest ever fit to a production bagger-Magnum makes a mark on anyone who sees it.
Slammed Rear End: The one-inch lowered rear seat gives the Magnum® a sleek profile that is equal parts attitude and performance.
High-Performance Audio: Stop. Stare. And listen to our high-performance audio system blasting 100 watts from 6 speakers.
Cruise Control and ABS Brakes: Turn on the cruise control, crank up the speakers, and enjoy the ride knowing that antilock brakes monitor your traction at all times.

Specifications

ABS: Standard
Dry Weight: 810 lb. / 367 kg
Displacement: 106 ci / 1731 cc
Oil Capacity: 5.0 qt. / 4.73 L

Engine & Drivetrain

Battery: YTX20HL-BS/12 Volt 18 Amp Hour 310 CCA
Charging System: 48 amps max output
Compression Ratio: 9.4 : 1
Cooling: Air / oil
Drive/Driven Clutch: Wet, multi-plate
Exhaust: Dual-Large Bore Slash-Cut with Common Volume
Fuel System: Electronic Fuel injection with dual 45mm throttle body
Transmission/Final Drive: Carbon Fiber Reinforced Belt
Transmission/Primary Drive: Gear drive with torque compensator
Transmission Type: 6-speed overdrive constant mesh
Valve Train: Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
Bore x Stroke (mm): 101 x 108 mm
Engine Type: Freedom 106/ 6 V-Twin

Suspension

Front Suspension: Telescopic Fork / 5.1 in. (130mm)
Rear Suspension: Single monotube air adjustable shock: 4.4 in. (113 mm) travel

Brakes

Brake System Type: Conventional w/ ABS
Front Brakes: Dual 300mm floating rotor with 4-piston calipers
Rear Brakes: Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper

Tires / Wheels

Front Tires: Dunlop D418F Elite 3
Front Wheel: 21 x 3.5 in. Front
Rear Tires: Dunlop D418 Elite 3
Rear Wheel: 16 x 5.0 in.

Dimensions

Fuel Capacity (Litres): 5.8 gal. / 22 L
GVWR: 1310 lb. / 595 kg
Ground Clearance: 5.3 in. / 134mm
Rake/Trail: 29.0 deg. / 5.6 in. / 142 mm
Seat Height: 25.7 in. / 654mm
Wheelbase: 65.7 in. / 1670 mm
Overall Length (in./mm.): 104.6 in. / 2657 mm

Features

Colors (Base): Gloss Black w/Graphics

NOTES:

Victory® and Victory Motorcycles® are registered trademarks of Polaris Industries Inc. Always wear a helmet, eye protection, and protective clothing and obey the speed limit. Never ride under the influence of drugs or alcohol.

Specifications

Engine
Displacement	106 ci (1731 cc)
Engine Type	Freedom 106/ 6 V-Twin
Bore and Stroke	101 x 108 mm
Cooling	Air / oil
Compression Ratio	9.4 : 1
Fuel System	Electronic Fuel injection with dual 45mm throttle body
Chassis
Front Suspension	Telescopic Fork / 5.1 in. (130mm)
Rear Suspension	Single monotube air adjustable shock: 4.4 in. (113 mm) travel
Front Brakes	Dual 300mm floating rotor with 4-piston calipers
Rear Brakes	Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper
Front Tire	Dunlop D418F Elite 3
Rear Tire	Dunlop D418 Elite 3
Dimensions
Wheelbase	65.7 in. (1670 mm)
Seat Height	25.7 in. (654mm)
Rake	29.0 deg.
Trail	5.6 in. (142 mm)
Fuel Capacity	5.8 gal. (22 L)
Dry Weight	810 lb. (367 kg)
Transmission
Transmission	6-speed overdrive constant mesh
Final Drive	Carbon Fiber Reinforced Belt
General
Colors	Gloss Black w/Graphics

Compare Models

Chassis

Year	2017
Manufacturer	Victory Motorcycles
Model	Magnum®
Style	Cruiser
MSRP*	$22,599.00
Front Suspension	Telescopic Fork / 5.1 in. (130mm)
Rear Suspension	Single monotube air adjustable shock: 4.4 in. (113 mm) travel
Front Brakes	Dual 300mm floating rotor with 4-piston calipers
Rear Brakes	Single 300 x 5mm/ Floating Rotor/ 2 Piston Caliper
Front Tire	Dunlop D418F Elite 3
Rear Tire	Dunlop D418 Elite 3
Dimensions
Wheelbase	65.7 in. (1670 mm)
Seat Height	25.7 in. (654mm)
Rake	29.0 deg.
Trail	5.6 in. (142 mm)
Fuel Capacity	5.8 gal. (22 L)
MPG
Dry Weight	810 lb. (367 kg)
Engine
Displacement	106 ci (1731 cc)
Engine Type	Freedom 106/ 6 V-Twin
Bore and Stroke	101 x 108 mm
Cooling	Air / oil
Compression Ratio	9.4 : 1
Fuel System	Electronic Fuel injection with dual 45mm throttle body
Ignition
General
Speedometer
Tachometer
Odometer
Colors	Gloss Black w/Graphics
Warranty
Transmission
Transmission	6-speed overdrive constant mesh
Final Drive	Carbon Fiber Reinforced Belt
